Explosion proof linear electric actuator
Linear Electric ActuatorLinear electric actuator output the displacement and thrust, which is suitable for the valve type of flap lifting control, such as control valve and gate valve, etc.AOX linear electric actuator has wide range of thrust and control options to suit your specific requirements.AO......
Send Inquiry
Product Description
Linear Electric Actuator
Linear electric actuator output the displacement and thrust, which is suitable for the valve type of flap lifting control, such as control valve and gate valve, etc.
AOX linear electric actuator has wide range of thrust and control options to suit your specific requirements.
AOX linear electric actuator provide high reliability and performance for valve automation system.
Product Description
Features
Corrosion level: Epoxy powder coating. NEMA 4X corrosion protection
Ingress protection: IP67 (IP68 is optional)
Force range:2000 - 30000 N
Explosion proof mark: EX d II CT5
On/off type signal:
Input : AC 110/220 Input
Signal Feedback:Integrated fault contacts,Close the valve contact,Open the valve contact
High corrosion resistance
Space heater with thermostat to prevent overheating
Local control options for easy management and emergency operation
ESD beyondprotection
Self-diagnosis fault alarm
Conditional control protection
1. Indicator for AOX-QL series explosion proof linear electric actuator
Installs indicator in support axis, more intuitive and more convenient to observe.

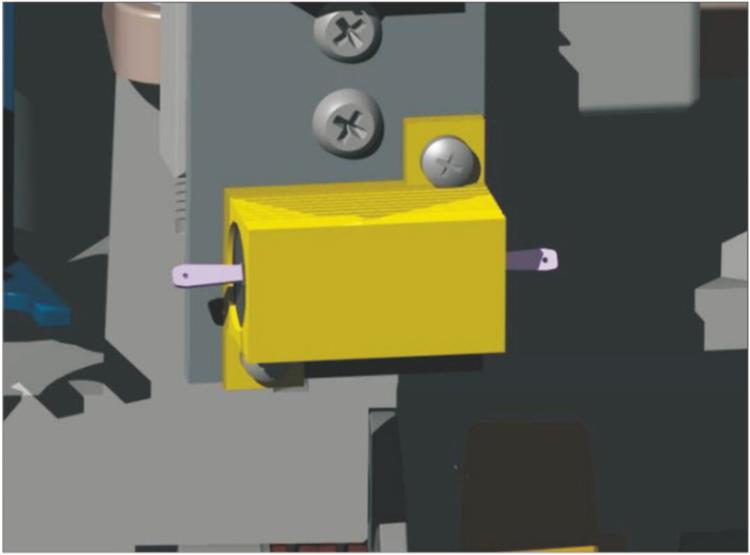

2. Space heater
It is used for controlling temperature to avoid condensing internal of housing and keep dry.

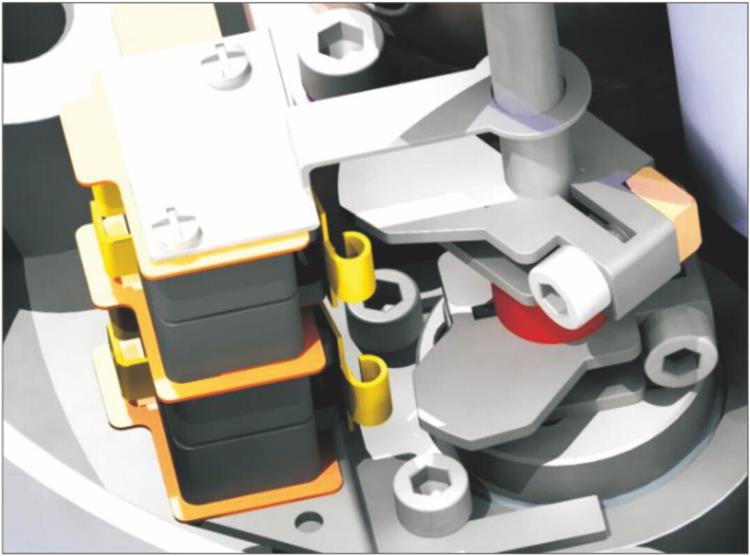

3. Limit switch for AOX-QL series explosion proof linear electric actuator
Mechanical, electronic double limit. Mechanical limit stopper is adjustable, safe and reliable; electronic limit switch is controlled by cam. Set position accurately and conveniently.
